KVD 12 1/2'' Danfoss Type Receiver Pressure Regulator 034L0173 034L0176

Name: KVD 12 12 Danfoss Type Receiver Pressure Regulator 034L0173 034L0176
Brand: BRANDO
Price: 1 USD

Brand Name : BRANDO

Model Number : KVD 12

Certification : CE, ISO

Place of Origin : Ningbo, China

MOQ : 20pcs

Price : Negotiation

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 5 to 10 working days

Packaging Details : Box, Carton, Pallet

Product Name : Receiver Pressure Regulator

Refrigerant : R22, R134a, R290, R404A, R407A, R407C, R407F, R407H, R448A, R449A, R449B, R450A, R452A, R454A, R454C, R455A, R507A, R513A, R515B, R516A, R600, R600a, R1234ze(E), R1234yf, R1270

Port Size : 1/2''

Connection : Solder (ODF)

Adjustment Range : 3 to 20 bar, Factory Setting = 10 bar

Max Working Pressure : 28 bar

Medium Temperature Range : -45 to +130℃

Code No : 034L0173, 034L0176

Contact Now

KVD 12 1/2'' Danfoss Type Receiver Pressure Regulator 034L0173 034L0176

KVD is a modulating receiver pressure regulator. It opens on falling receiver pressure and bypasses hot gas to maintain the receiver pressure at the regulator setting (adjustable). The receiver pressure regulator KVD opens at a fall in pressure on the outlet side, i.e. when the pressure in the receiver falls below the set value. KVD regulates only in dependence on the outlet pressure. Pressure variations on the inlet side of the regulator do not affect the degree of opening since KVD is equipped with an equalization bellows. This bellows has an effective area corresponding to that of the valve seat. The KVD regulator is also equipped with an effective damping device against pulsations which can normally arise in a refrigeration plant. The damping device helps to ensure long life for the regulator without impairing regulation accuracy.

Technical Data:

Refrigerants	R22, R134a, R290, R404A, R407A, R407C, R407F, R407H, R448A, R449A, R449B, R450A, R452A, R454A, R454C, R455A, R507A, R513A, R515B, R516A, R600, R600a, R1234ze(E), R1234yf, R1270
Adjustment Range	3 to 20 bar Factory Setting = 10 bar
Max Working Pressure	PS/MWP= 28 bar
Max Test Pressure	Pe = 31 bar
Medium Temperature Range	-45 to +130℃

Ordering Code:

Model	Flare Connection		Code no	Solder Connection		Code no
KVD 12	1/2''	12mm	034L0171	1/2''	12mm	034L0173 034L0176
KVD 15	5/8''	16mm	034L0172	5/8''	16mm	034L0177

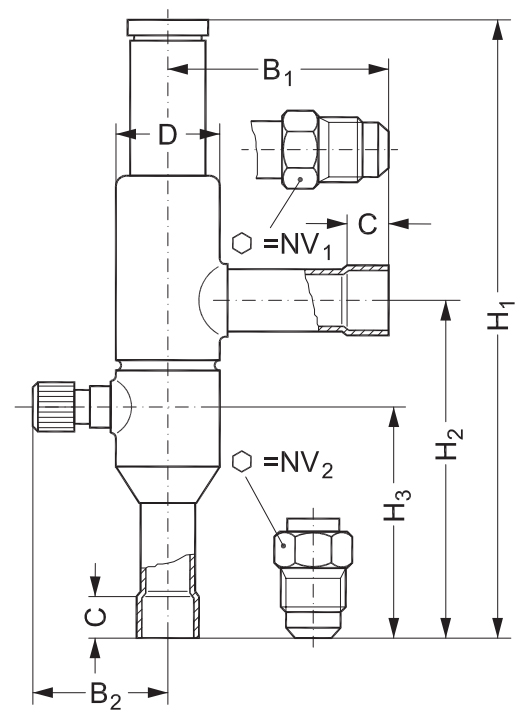

Dimension:

Model	NV1	NV2	H1	H2	H3	B1	B2	C Solder	φ D
KVD 12	19	19	179	99	66	64	41	10	30
KVD 15	24	24	179	99	66	64	41	12	30

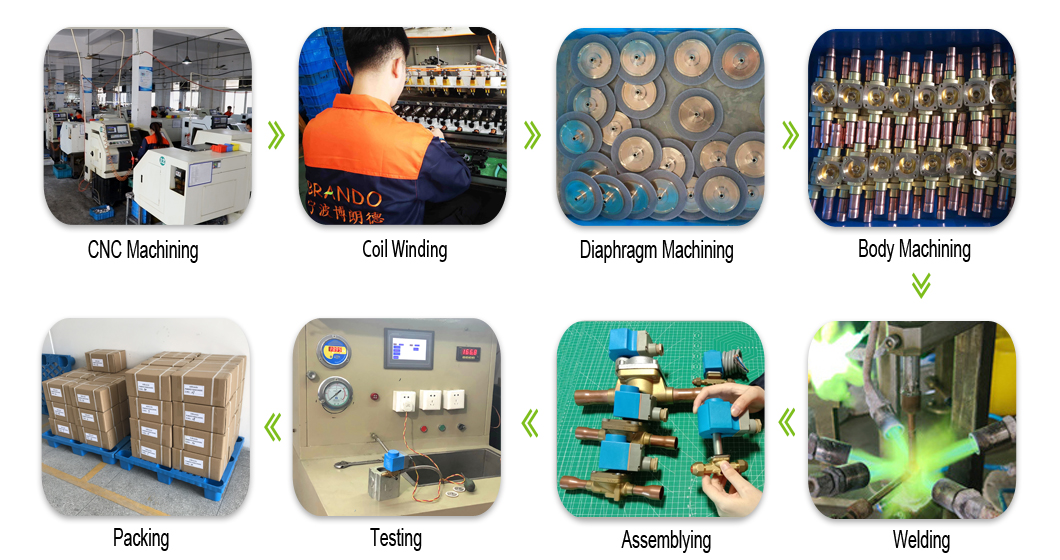

Our Production:

KVD 12 1/2'' Danfoss Type Receiver Pressure Regulator 034L0173 034L0176

Related Products:

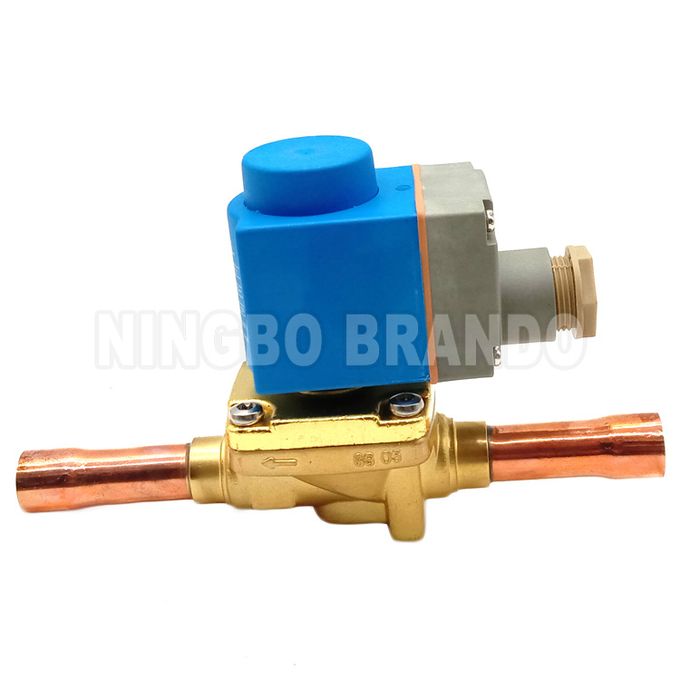

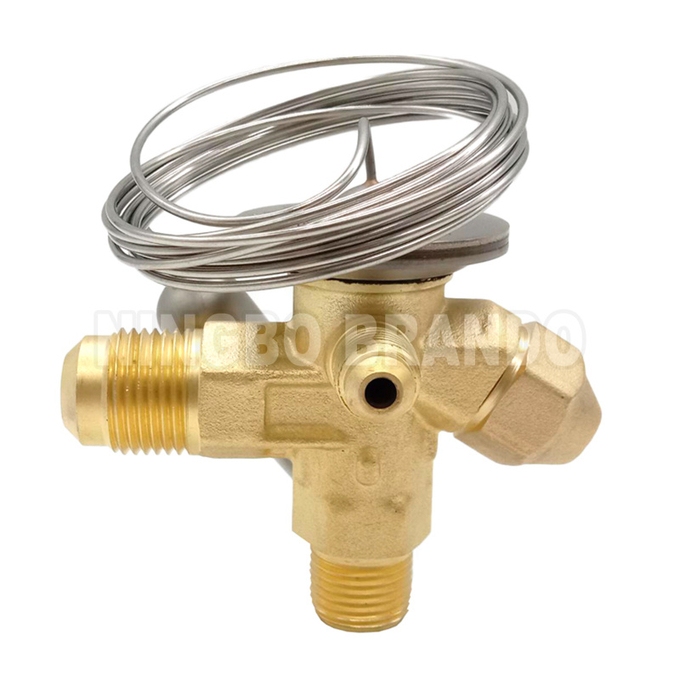

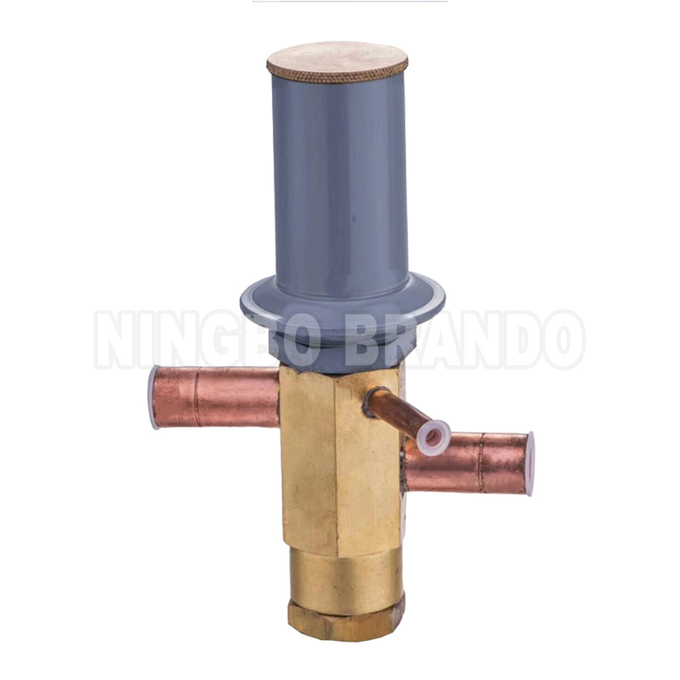

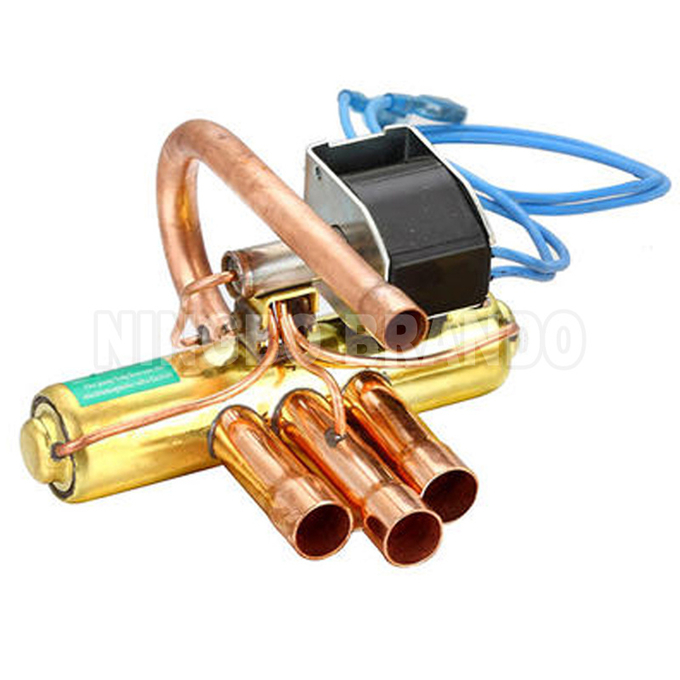

Solenoid Valve	4 Way Reversing Valve	Expansion Valve	Hot Gas Bypass Valve

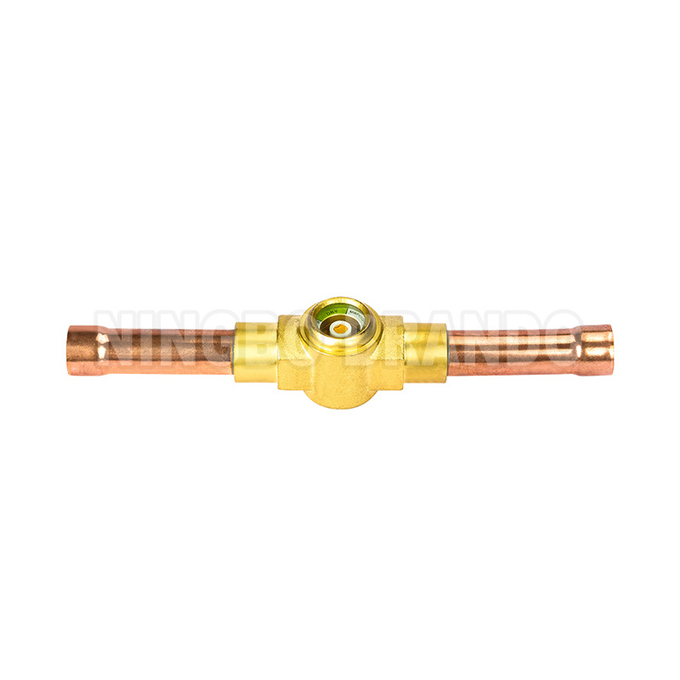

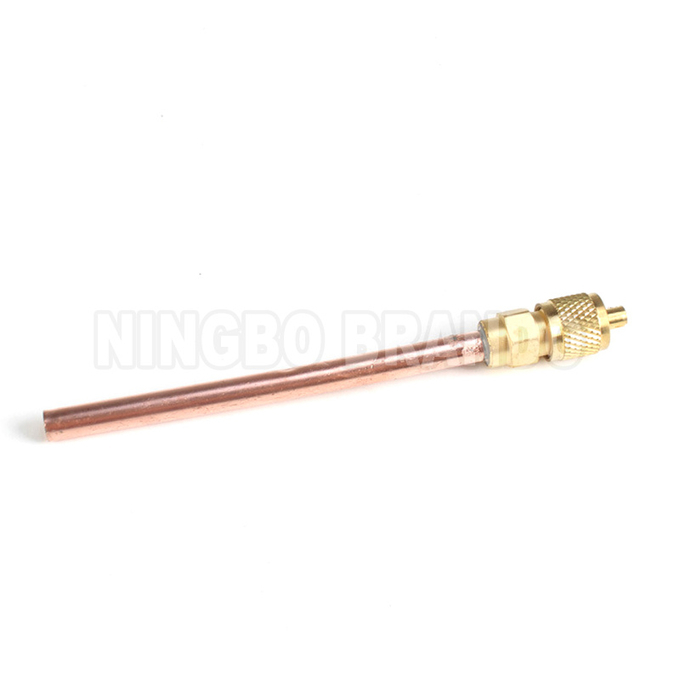

Ball Valve	Check Valve	Sight Glass	Access Valve
