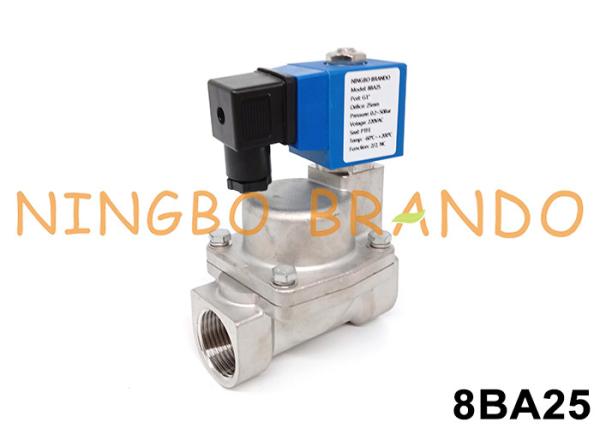

1'' High Pressure Stainless Steel Solenoid Valve 120 bar Pilot Piston

Name: 1 High Pressure Stainless Steel Solenoid Valve 120 bar Pilot Piston
Brand: Brando
Price: 1 USD

China 1'' High Pressure Stainless Steel Solenoid Valve 120 bar Pilot Piston wholesale

Brand Name : Brando

Model Number : 8BA

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : L/C, T/T, PayPal, Western Union, MoneyGram

Supply Ability : 100000 pcs per month

Delivery Time : 4-8 days

Packaging Details : Inner boxes, Carton, Pallet

Port Size : 3/8'', 1/2'', 3/4'', 1''

Orifice Size : 15mm, 20mm, 25mm

Operation Mode : 2 Way Normally Closed

Operation : Piston Pilot Operated

Body Material : Stainless Steel

Working Medium : Air, Water, etc

Seal Material : FKM, PTFE

Pressure Range : 0.2 to 12 MPa

Voltages : 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Contact Now

1'' High Pressure Stainless Steel Solenoid Valve 120 bar Pilot Piston

Product Features of Stainless Steel Solenoid Valve:

1. Working Medium: Compressed Air, Water, etc
2. Working Pressure Range: 0.2 to 12 MPa (See the parameter table below for details)
3. Seal Material: FKM
4. Body Material: Brass, Stainless Steel
5. Port Size: 3/8'', 1/2'', 3/4'', 1''
6. Orifice Size: 15mm, 20mm, 25mm
7. Operation: Piston Pilot Operated
8. Coil Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data of Stainless Steel Solenoid Valve:

Model	Port Size	Orifice Size	Cv	Min Pressure	Max Pressure		Seal Material	Body Material
					AC	DC
8BA12	3/8''	15mm	4.5	0.2 MPa	12MPa5MPa	10MPa5MPa	FKM	Brass Stainless Steel
8BA15	1/2''	15mm	4.5
8BA20	3/4''	20mm	9.3
8BA25	1''	25mm	12

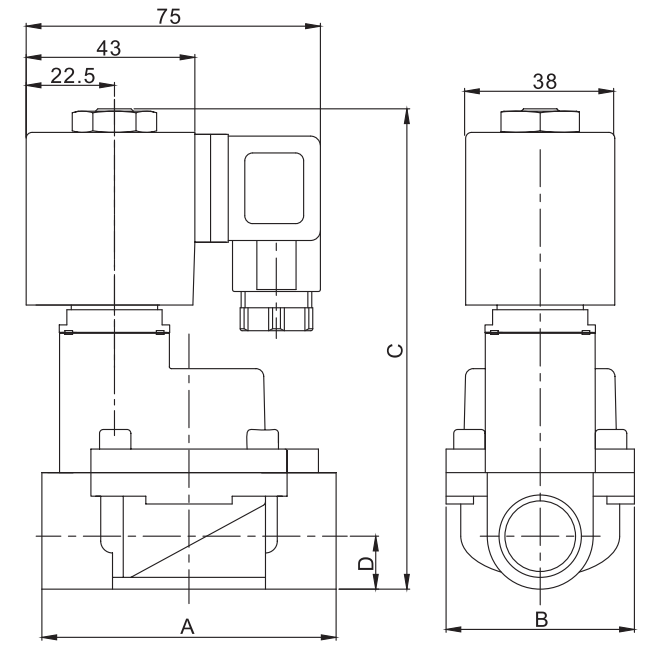

Main Dimension of Stainless Steel Solenoid Valve:

1'' High Pressure Stainless Steel Solenoid Valve 120 bar Pilot Piston

Model		8BA12	8BA15	8BA20	8BA25
A		75	75	83	100
B		75	48	60	72
C	Brass	123	123	142	148
C	Stainless Steel	125	125	145	150
D		13.5	13.5	17.5	22

Brando Factory Production Video of Solenoid Valves:

More High Pressure Solenoid Valves for you to choose:

Brass Solenoid Valves

MAX 50 bar	MAX 50 bar	MAX 50 bar	MAX 50 bar

MAX 50 bar	MAX 70 bar	MAX 120 bar	MAX 200 bar

Stainless Steel Solenoid Valves

MAX 50 bar	MAX 50 bar	MAX 50 bar	MAX 100 bar

MAX 120 bar	MAX 160 bar	MAX 200 bar	MAX 300 bar

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
