Very High Temperature Stainless Steel Solenoid Valve 1/2'' 24VDC 110VAC 220VAC

Name: Very High Temperature Stainless Steel Solenoid Valve 12 24VDC 110VAC 220VAC
Brand: BRANDO
Price: 1 USD

China Very High Temperature Stainless Steel Solenoid Valve 1/2'' 24VDC 110VAC 220VAC wholesale

Brand Name : BRANDO

Model Number : BDH

Certification : CE, ISO

Place of Origin : Ningbo, China

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 100000 pcs per month

Delivery Time : 4 to 7 working days

Packaging Details : Box, Carton, Pallet

Product Name : Solenoid Valve

Port Size : 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''

Pipe Connection : Female Threaded

Orifice Size : 15mm, 20mm, 25mm, 35mm, 50mm

Function : 2 Way Normally Closed

Operation : Piston Pilot Operated

Body Material : Stainless Steel 304, Stainless Steel 316

Seal Material : PTFE + Metal

Working Medium : Steam, Hot Oil, High Temperature Liquid, High Temperature Gas, etc

Working Temperature Range : 5 to 225 ℃

Working Pressure Range : 0.5 to 25 bar

Voltage : 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Contact Now

Very High Temperature Stainless Steel Solenoid Valve 1/2'' 24VDC 110VAC 220VAC

This is an ultra high temperature normally closed (power to open) piston type solenoid valve with a 304 Stainless Steel body and PTFE seat. Mainly used for high temperature applications as it will do up to 225°C saturated steam and up to 225°C in other media such as hot oil. Will handle fluids up to 50 centistoke viscosity. Typical Applications include steam, laundry equipment, hot oil, steam curing beds, boilers and general industry.

Technical Data:

Port Size	Orifice Size	CV	Working Pressure (bar)			Working Temperature (℃)	Voltage
			Min	Max		5 to 225	12VDC 24VDC 24VAC 110VAC 220VAC
			Min	Oil	Steam
3/8''	15mm	4.5	0.5	25
1/2''	15mm	4.5
3/4''	20mm	8
1''	25mm	12
1 1/4''	35mm	22
1 1/2''	35mm	22
2''	50mm	45

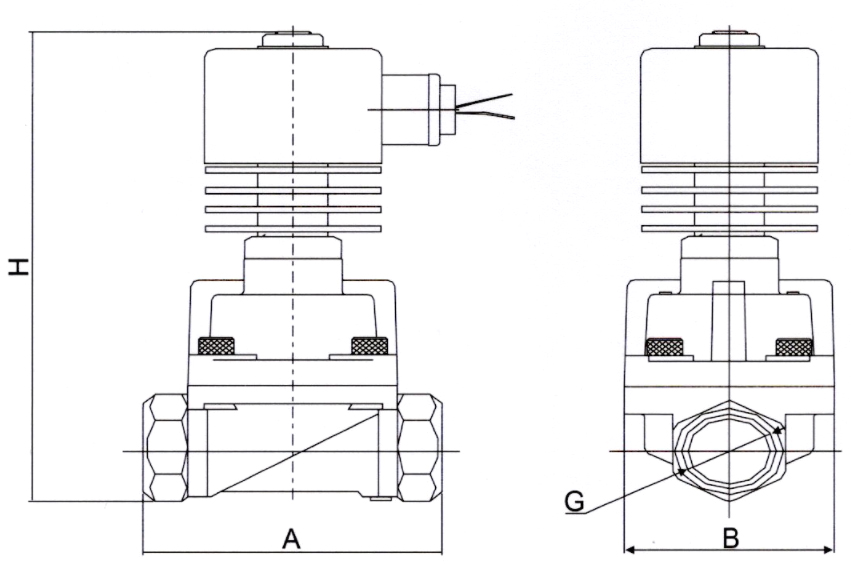

Main Dimension:

Very High Temperature Stainless Steel Solenoid Valve 1/2'' 24VDC 110VAC 220VAC

G	A	B	H
3/8''	75	52	159
1/2''	75	52	159
3/4''	85	60	171
1''	100	70	178
1 1/4''	120	90	198
1 1/2''	120	90	198
2''	150	110	220

Production Video of Solenoid Valve:

More High Temperature Solenoid Valves:

Brass Solenoid Valves

Stainless Steel Solenoid Valves

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
