Diaphragm For Waston Pulse Jet Valve 2.5'' WPS-CA/TG62 WPS-CA/EP62

  • 1
  • 2

Brand Name : BRANDO

Model Number : WPS62

Certification : CE, ISO

Place of Origin : Ningbo, China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 100000 sets per month

Delivery Time : 4 to 7 working days

Packaging Details : Plastic bag, Box, Carton, Pallet

Product Name : Pulse Valve Diaphragm

Diaphragm Material : NBR, VITON

Seat Material : Rubber

1 Set : 1pc Big Diaphragm, 1pc Small Diaphragm, 2pcs Springs

Fitted Pulse Valve Port : 2 1/2''

Fitted Pulse Valve Model : WPS-CA/TG62, WPS-CA/EP62

Contact Now

Diaphragm For Waston Pulse Jet Valve 2.5'' WPS-CA/TG62 WPS-CA/EP62

The electromagnetic pulse valve is composed of electromagnetic pilot operator, diaphragm and valve body. Due to difference of pressure acting on two sides of the diaphragm, the diaphragm is pressed closely against the outlet of valve to keep the valve stays in "closed" position.

When energized by an electric signal from the controller, the electromagnetic armature will move to open the discharge opening of back cavity. The compressed air in back cavity bursts out to relief pressure and pressurized air in front cavity pushes up the diaphragm to open the main outlet of valve, then the electromagnetic pulse valve opens and starts to blow.

When the signal disappears and the spring works immediately to send the pilot operator back to its original position and close the discharging opening. The diaphragm will close the passage by the effect of the pressure in the front cavity and the spring. The pulse valve stops blowing.

The orifice in the diaphragm damps the airflow when the armature is lifting up for releasing the pressure. When the discharge hole closed, the pressure gas will fill into the front cavity to close the passage by the diaphragm. The pulse valve stops blowing.

Ordering Code of Diaphragm For WASTON Pulse Valve:

Diaphragm Model No
Fitted Pulse Valve Model No
Pulse Valve Port Size
Diaphragm Material
WPS20
WPS-CA/TG20
WPS-CA/TD20
3/4''
NBR
WPS25
WPS-CA/TG25
WPS-CA/TD25
WPS-CA/EG25
1''
WPS40
WPS-CA/TG40
WPS-CA/TD40
WPS-CA/EG40
1 1/2''
WPS50
WPS-CA/TG50
WPS-CA/EP50
2''
WPS62
WPS-CA/TG62
WPS-CA/EP62
2 1/2''
WPS76
WPS-CA/TG76
WPS-CA/EP76
3''
WPS102
WPS-CA/EP102.B
WPS-CA/EP102
4''
WPS200
WPS-CA/EP200
8''
WPS250
WPS-CA/EP250
10''
WPS300
WPS-CA/EP300
12''
WPS350
WPS-CA/EP350
14''
WPS400
WPS-CA/EP400
16''
EPDM, FKM can be customized

Video of Diaphragm For 2.5'' WASTON Pulse Valve:

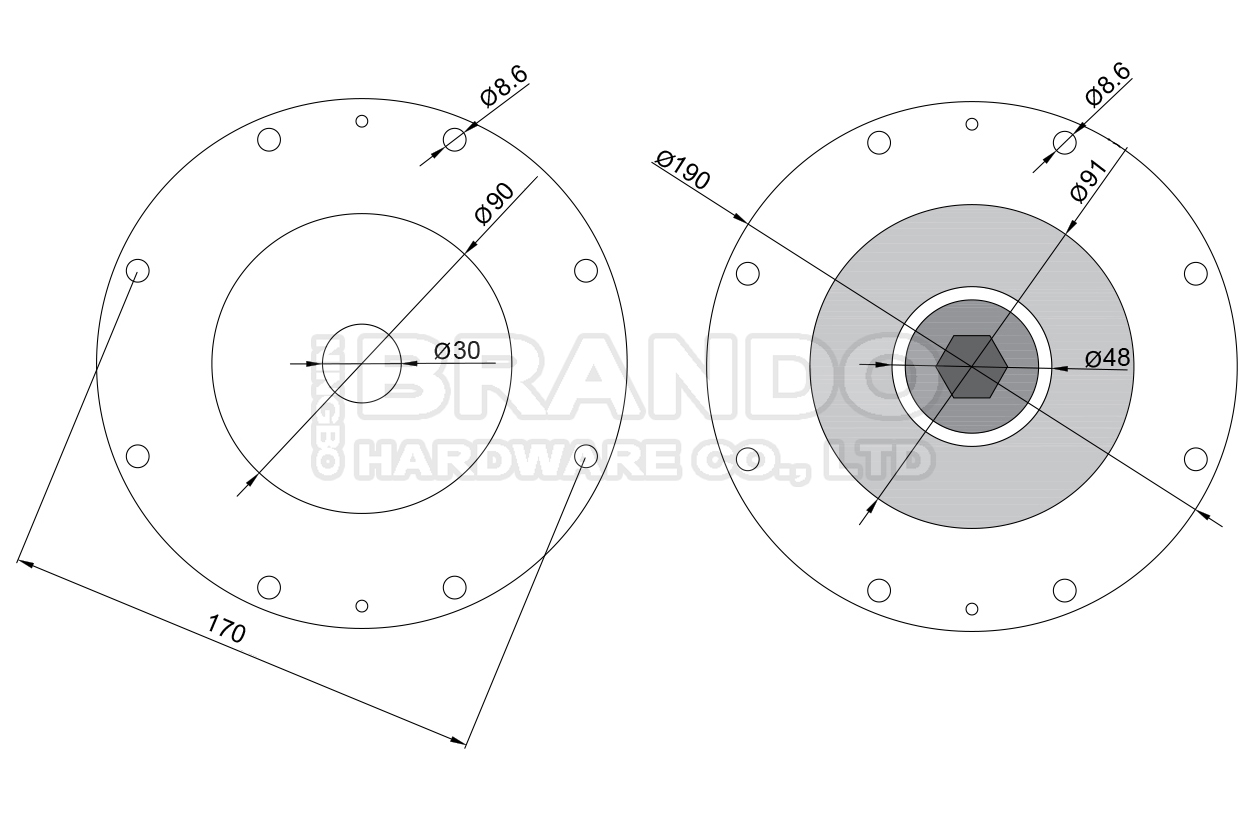

Dimension of Diaphragm For 2.5'' WASTON Pulse Valve:

Big Diaphragm For 2.5'' WASTON Pulse Valve
Diaphragm For Waston Pulse Jet Valve 2.5'' WPS-CA/TG62 WPS-CA/EP62
Small Diaphragm For 2.5'' WASTON Pulse Valve
Diaphragm For Waston Pulse Jet Valve 2.5'' WPS-CA/TG62 WPS-CA/EP62

Pictures of Solenoid Valve Membrane Production:

Diaphragm For Waston Pulse Jet Valve 2.5'' WPS-CA/TG62 WPS-CA/EP62

More Products For WASTON Pulse Valve for you to choose:

Diaphragm For Waston Pulse Jet Valve 2.5'' WPS-CA/TG62 WPS-CA/EP62 Diaphragm For Waston Pulse Jet Valve 2.5'' WPS-CA/TG62 WPS-CA/EP62 Diaphragm For Waston Pulse Jet Valve 2.5'' WPS-CA/TG62 WPS-CA/EP62
Solenoid Coil Solenoid Armature Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
