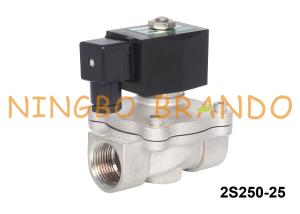

1'' Electric Water Solenoid Valve Stainless Steel 24V 220V
Product Features:
1. Function: 2 Way Normally Closed, 2 Way Normally Open
2. Operation: Direct Lifting Diaphragm
3. Port Sizes: 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'', etc;
4. Orifice Sizes: 15mm, 20mm, 25mm, 35mm, 40mm, 50mm
5. Working Medium: Water, Air, Gas, Oil, etc.
6. Valve Body Material: Brass, Stainless Steel
7. Valve Seal Material: NBR, EPDM, FKM;
8. Solenoid Coil Voltages: 12VDC 24VDC, 24VAC, 110VAC, 220VAC, etc;
9. Solenoid Coil Protection Class: IP65, IP67, Ex Proof, etc;
Ordering Code of Solenoid Valve:
Technical Data of Solenoid Valve:
| Model | | | | | | | |
| | | | | | | |
| Port Size | | | | | | | |
| Orifice Size | | | | | | |
| Cv Value | | | | | | |
| Medium | |
| Action | |
| Function | 2 Way, Normally Closed (NC), Normally Open (NO) |
| Viscocity | |
| Pressure | Air: (1 to 1MPa), Water (0 to 0.7MPa), Oil (0 to 0.9MPa), Normally Open (0 to 0.8MPa) |
| Temperature | NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -5 to +150℃, Silicone: -15 to +150℃ |
| Body Material | |
| Voltages | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Coil Type | Waterproof Coil, Round Coil, Square Coil, etc. |

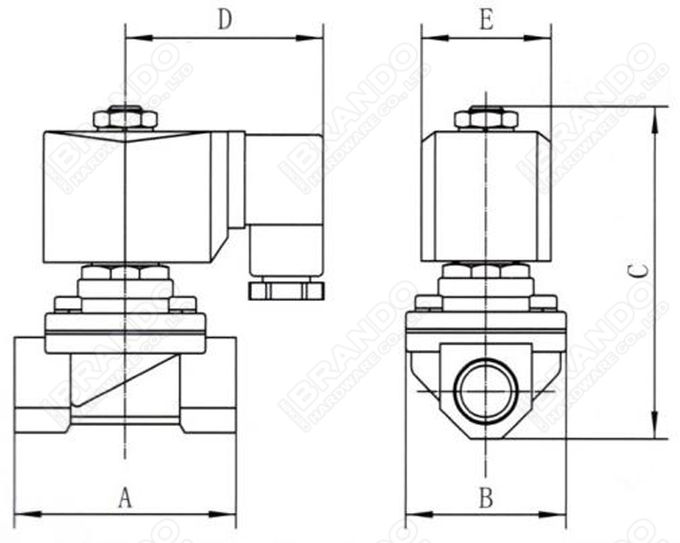

Main Dimension of Solenoid Valve:
| Model | | | | |
| 2S160-10 | | | | |
| 2S160-10-NO | |
| 2S160-15 | | | | |
| 2S160-15-NO | |
| 2S200-20 | | | | |
| 2S200-20-NO | |
| 2S250-25 | | | | |
| 2S250-25-NO | |
| 2S350-35 | | | | |
| 2S350-35-NO | |
| 2S400-40 | | | | |
| 2S400-40-NO | |
| 2S500-50 | | | | |
| 2S500-50-NO | |

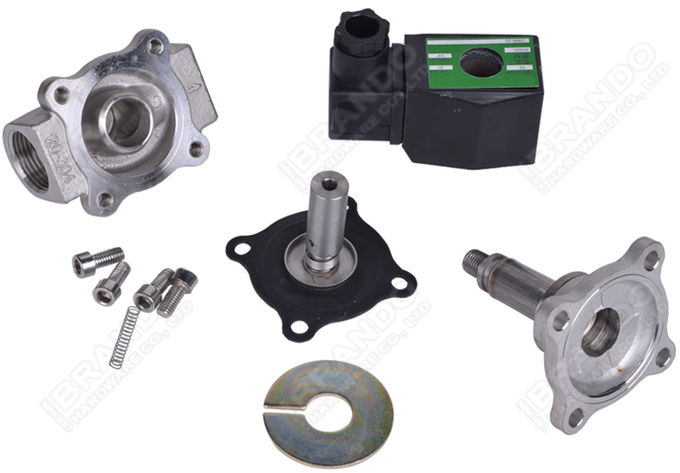

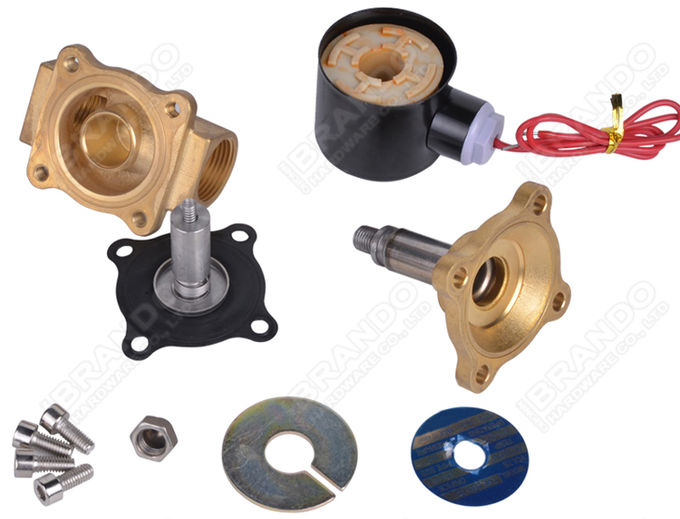

Solenoid Valve Assembly Display:
Brando Factory Production of Brass Solenoid Valves:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
